- Artemis Module (Cortex-M4F based Apollo3 microcontroller), Configurable via CH340E and Artemis Firmware Upload GUI; RTC with 1mAhr battery backup; LEDs: Power, LiPo charge indicator, Serial Tx and Rx, Status
- Very low power logging supported. OpenLog Artemis can be configured to take readings at 500 times a second, or as slow as 1 reading every 24 hours. You choose! When there is more than 2 seconds between readings OLA will automatically power down itself and the sensors on the bus resulting in a sleep current of approximately 18uA.
- This OpenLog uses common microSD cards to record clear text, comma-separated files. The OpenLog Artemis supports microSD cards formatted as FAT32 as well as the older FAT16 formats up to 32GB. The OLA can use any size microSD card and, as of firmware version 1.11, supports exFAT cards in addition to FAT32

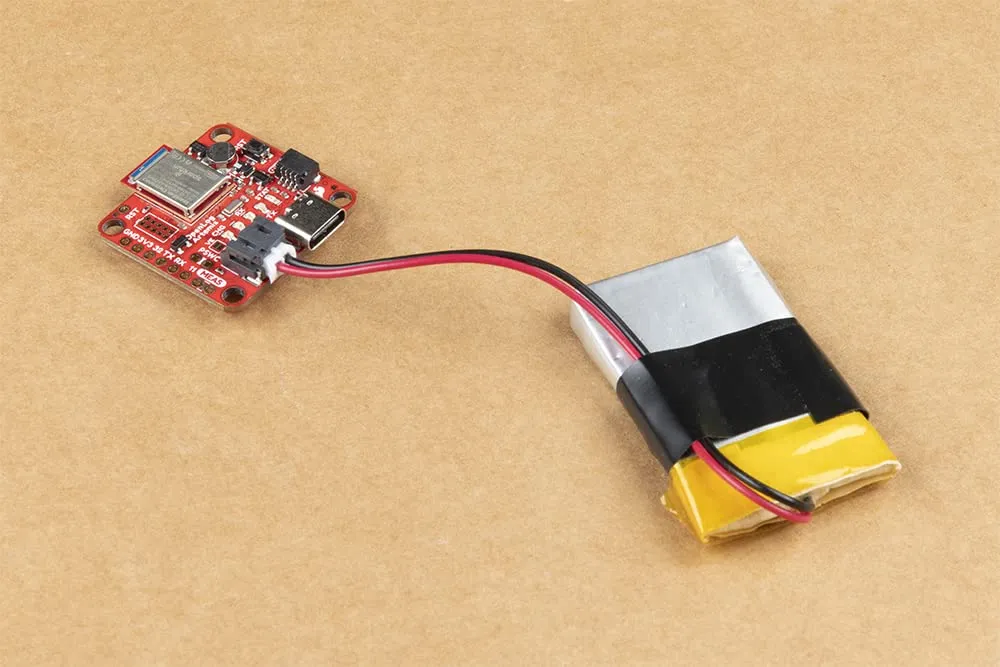

- Operating voltage range: 3.3V to 6.5V (via VIN with optional external power switch); 5V with USB (via 5V or USB type C); 3.6V to 4.2V with LiPo battery (via VBATT or 2-pin JST); Built-in MCP73831 single cell LiPo charger; Minimum 450mA charge rate; 3.3V (via 3V3); Current consumption: ~20mA (Run), ~80µA (Sleep), ~18µA (Deep Sleep - regulator shut down)
- Ports: 1x USB type C, 1x LiPo battery enabled, 1x Qwiic enabled I2C with power control, 1x SWD 2x5 header, 4x Analog-to-digital - 14-bit, up to 1900Hz, 2V max (3.3V compatible), Serial - Logging speeds up to 500000bps, 1x microSD socket - Support for FAT32 and older FAT16 formats up to 32GB with power control
The SparkFun OpenLog Artemis is an open source data logger that comes preprogrammed to automatically log GPS, serial data, and various pressure, humidity, and distance sensors. All without writing a single line of code! OpenLog Artemis, or "OLA," automatically detects, configures, and logs Qwiic sensors. The OLA is specifically designed for users who just need to capture a lot of data to a CSV and get back to their larger project.
Simply connect a compatible Qwiic-enabled device, power up the OpenLog Artemis, and all incoming serial data is automatically recorded to a log file with baud rates up to 500000bps], supported! The OLA also has four ADC channels available on the edge of the board. Voltages up to 2V can be logged with 14-bit precision up to 1900Hz for one channel and 1000Hz logging all four channels. Additionally, based on feedback from users we've added an on-board RTC so that all data can be time stamped.
The OpenLog Artemis is highly configurable over an easy to use serial interface. Simply plug in a USB-C cable and open a terminal at 115200bps. The logging output is automatically streamed to both the terminal and the microSD. Pressing any key will open the configuration menu.
The OpenLog Artemis automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (No soldering! No programming!).
- Is Discontinued By Manufacturer : No
- Product Dimensions : 1.46 x 1.46 x 0.39 inches; 0.35 ounces
- Batteries : 1 Lithium Metal batteries required.
- Date First Available : May 27, 2022
- Manufacturer : SparkFun Electronics
- Country of Origin : USA
