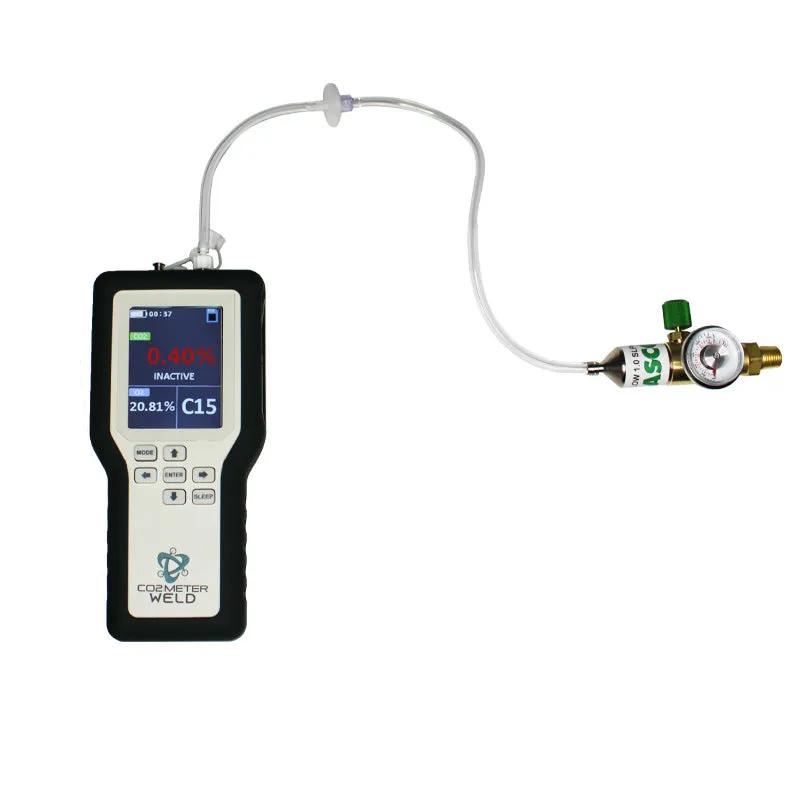

The CM-1652 Carbon Dioxide and Oxygen Welding Gas Analyzer provides customers with advanced analysis of active welding gas blends that contain 0-50% carbon dioxide and 0-25% oxygen. This device verifies the most common gas mixtures in the industry and will set the main targets that meet AWS verification.
Features
- Easy to Use, On-the-Go Dual CO2 O2 Analysis
- User configurable selection for individual concentration range
- The only device that meets AWS requirements to ensure your gas is in spec
- Gain UNLIMITED data logging to a Micro SD Card for quality assurance
Models
- CM-1650 - Carbon Dioxide Welding Gas Analyzer

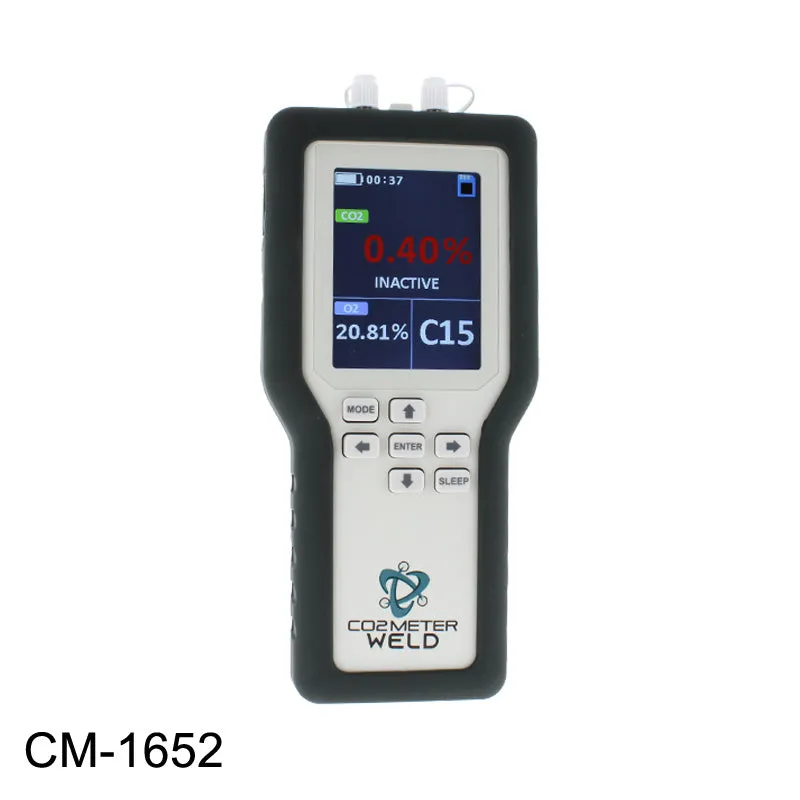

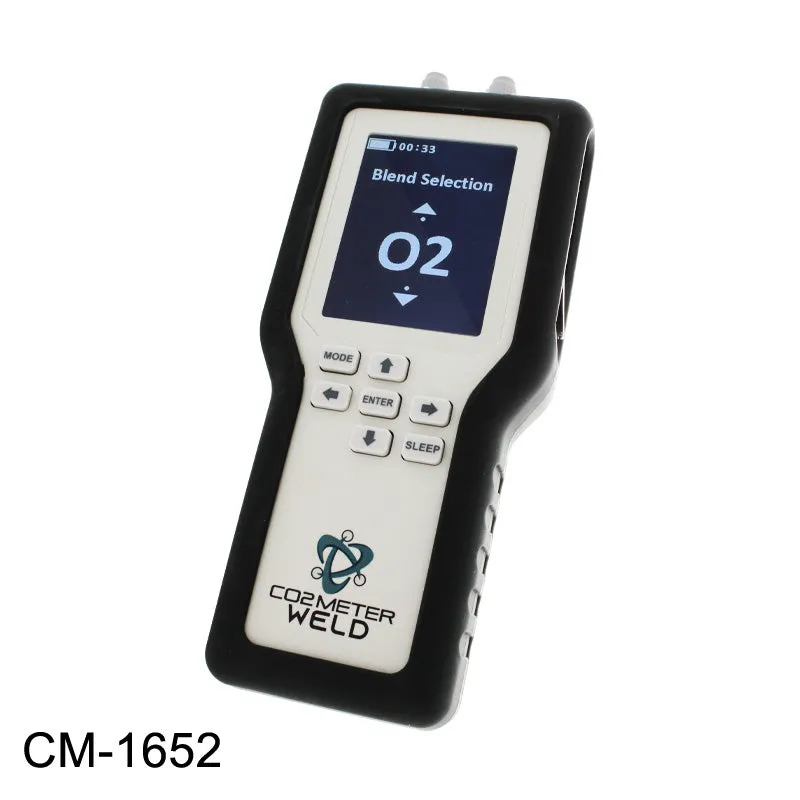

- CM-1652 - Oxygen and Carbon Dioxide Welding Gas Analyzer
Warranty
- 1-year warranty - see CO2Meter Terms & Conditions
Specifications
- CO2 Measurement Range: 0-50%
- O2 Measurement Range: 0-25%
- Measurement Targets: C2, C5, C10, C15, C20, C25, C30, C35, C40, C45, C50, O2
- Accuracy: @100% Range: ±300 ppm /- 5% of reading @ STP
- Sample Method: Flow through
- Operating Temperature: 0°C-50°C (32°F-122F°) to 95% RH, non-condensing
- CO2 Accuracy: @ 100% Range ±300 ppm /-5% of reading @ STP
- O2 Accuracy: Better than 2% at full scale
- Battery: (QTY-3) Li-ion rechargeable batteries, 30 hours per charge
- Resolution: 0.1%
- Dimensions: W 8.25”H 1.5” D
- Weight: .67 lbs. ( 305g)
- Sensor Life Expectancy: CO2: >15 years and O2: 5 years
Documents
Data Sheet (pdf)
Manual (pdf)
