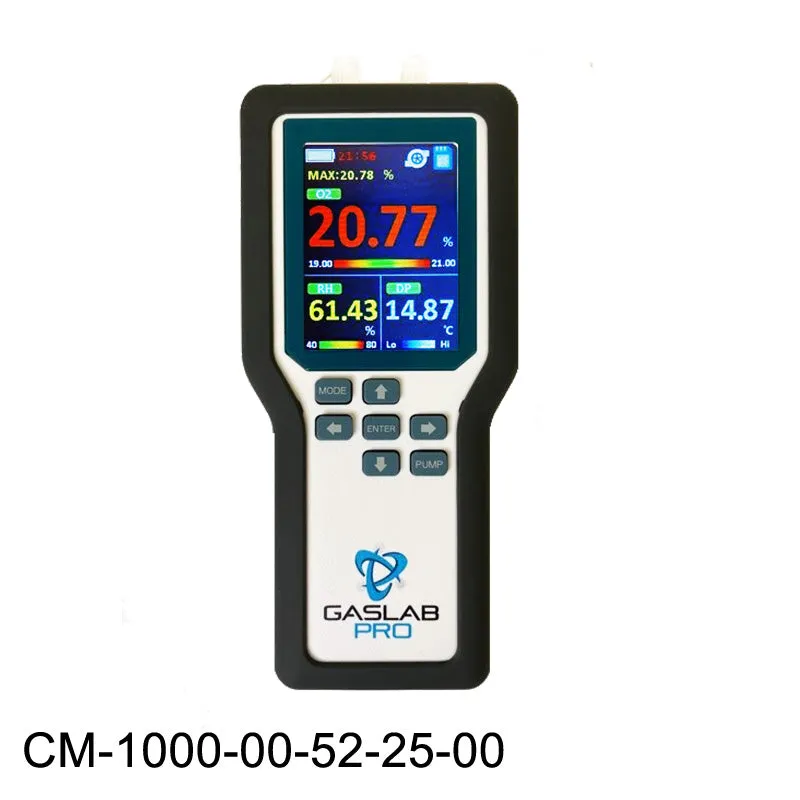

The 25% Oxygen and 100% Carbon Dioxide Sampling Data Logger is is designed to simultaneously measure multiple gas concentrations through a sampling method. Utilizing a micropump, the device will draw samples into the sensing chambers allowing each sensor to take a fast and accurate measurement of the sample.
The pricing on this device is dependent upon the number of sensors that are added to the device, please select by using the drop-down below.
Features
- Gas Concentrations: Carbon Dioxide and Oxygen
- Includes: RH, AMB, DP, ALTI
- Additional Gases: any 20mm EC sensor can be added
- CO2 Measurement range: 100%
- O2 Measurement range: 25%
- Large, backlit LCD display for easy readability including graphing
- Audible Alarm
- Data Logging with micro SD Card (16GB included)
- Li-ion rechargeable batteries lasting 30 hrs. (included)
- Metal Carrying Case Included
Applications
- Laboratory & Scientific
- Medical
- Industrial
- Construction
- Safety
Specifications
- Sensing Methods:
- Nondispersive Infrared (NDIR): CO2
- Oxygen Quenching by Fluorescence : O2
- Measures:
- CO2: -100%
- *Please note you can only have one CO2 sensor per device*
- O2: 0-25%, < 2% FS / 0.1 mbar
- RH: 0-100%, ±3% @25°C (20-80%RH), others ±5%
- Temperature: 0~50°C,±1℃
- Barometer: 50~110kPa, ±0.4kPa
- Relative Humidity: 0~95%, ±3% @25°C (20~80%RH), others ±5%
- Accuracy: ±70 ppm /- 5% of reading @ STP
- Alarm Volume: 80db ±5% @10cm
- Display Resolution:
- CO2: 1ppm, 10ppm, or 100ppm
- O2: 0.01%
- RH: 0.01%
- Operating Conditions: 0~50°C(32~122°F), 0~95%RH, non-condensing
- Storage Temperature: -20~60°C(-4~140°F)
- Power Supply: (3) Rechargeable Battery - Li-ion 18650 3.7V
- Weight: 305g (without batteries)
- Dimensions: 225.8 x 99.6 x 55 mm (8.9 x 3.9 x 2.2 in.)
Includes
- Handheld O2 CO2 Sampling Data Logger Detector
- Manual
- 3 batteries
- USB 1.5M cable
- 16 GB SD Card - with files that include key calibration information
- Tubing - 1/8" ID x 1/4" OD x 1/15" Wall Clear PVC Tubing 10 feet
- Hydrophobic and Particulate Filters
- Water Traps
Warranty
- 1 year - See CO2Meter Terms and Conditions
Documents
Data Sheet (pdf)
Manual (pdf)
GasLab Pro Pump Notice (pdf)
GasLab Pro Calibration SD Card Notice (pdf)
CM-1000 Video Playlist - Settings, Data Logging, Calibration (web)
This device features data logs that are stored on a micro SD Card
The GasLab® Software is not compatible with this device.
Accessories
- BAT-18650 - EBL 18650 3.7V Li-ion Rechargeable Batteries
EBL Intelligent Batteries provide a fast charge and are upgraded ETL certified to be used with all CM-500 and CM-1000 series handheld gas detectors.
- EBL Universal Battery Charger for 3.7V Rechargeable Batteries
With the EBL Universal Battery Charger, users will be able to charge the lithium batteries when plugged into a USB outlet. The battery charger also provides a clear indication of charge levels, turning green after fully charged.
